Dust Collector Upgrade for GrainCorp

Location: Dunolly, Australia

Time: Feb 2025 - Present

FTPL#11489

Background

GrainCorp’s bulk grain facility in Dunolly needs to replace its aging dust collector to manage grain dust and allow for future extraction points. Fowlerex is asked to design and supply a new system and, after a site inspection, recommends increasing the airflow capacity from the specified 20550 m³/h to about 25000 m³/h to provide extra ventilation. The proposal calls for a PA120 × 4000 baghouse to be delivered to Dunolly, complete with drawings, fabrication, pulsing equipment, exhaust fan, ladders and platforms. The design incorporates a fully welded mild steel housing, anti-static filter bags and on-demand pulse cleaning to ensure reliable operation and compliance with explosion venting standards.

Our Solutions

The proposal calls for a baghouse to be delivered to Dunolly, complete with drawings, fabrication, pulsing equipment, exhaust fan, ladders and platforms. The design incorporates a fully welded mild steel housing, anti-static filter bags and on-demand pulse cleaning to ensure reliable operation and compliance with explosion venting standards.

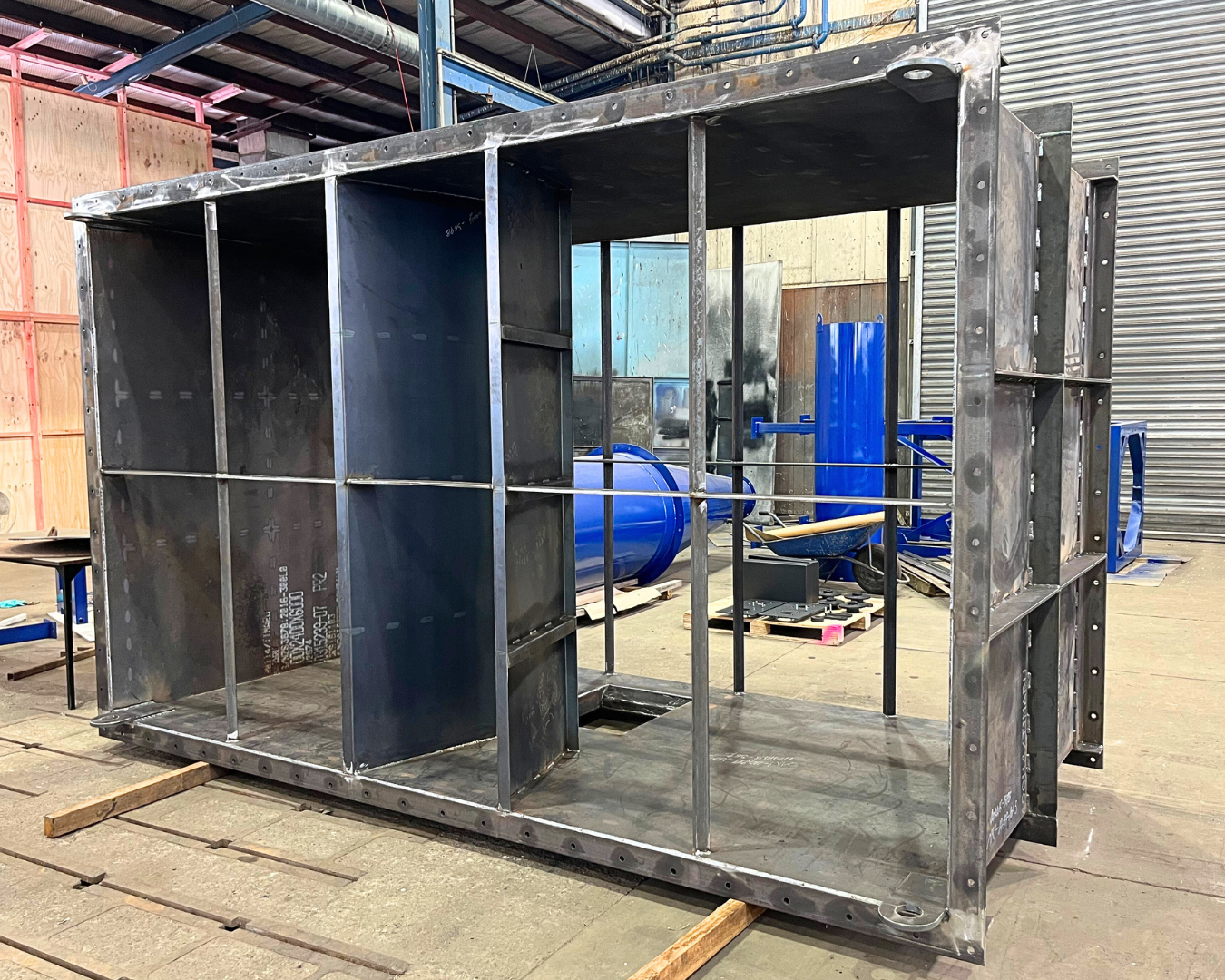

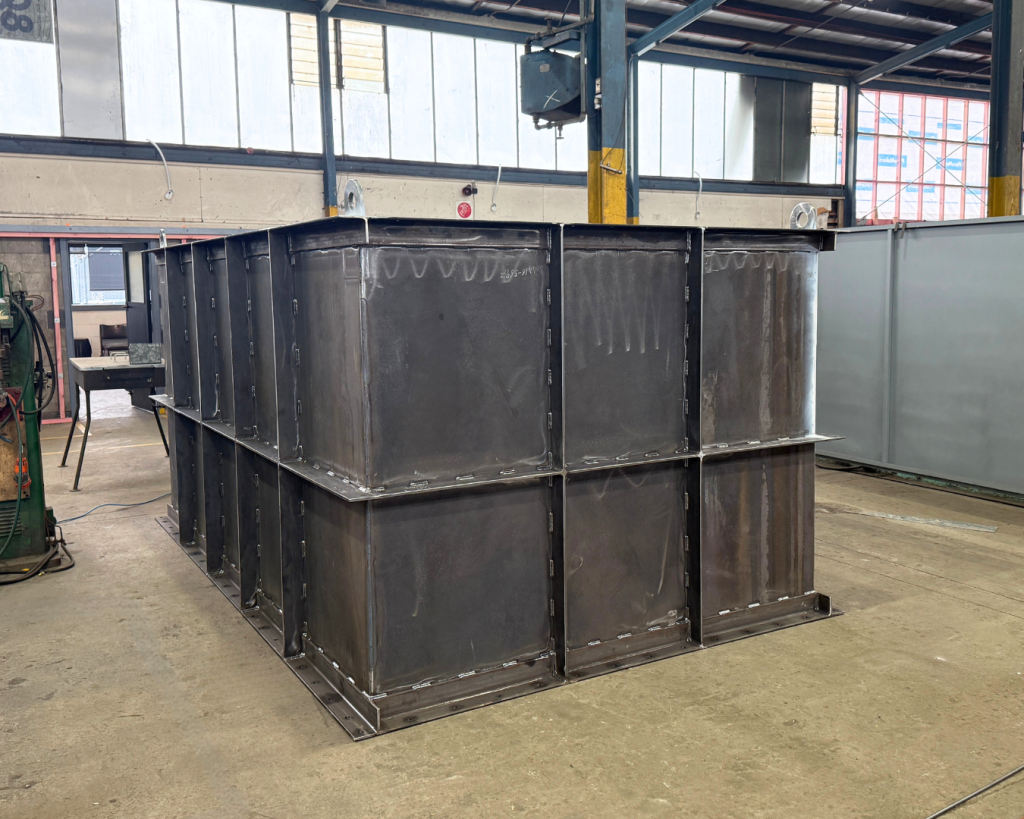

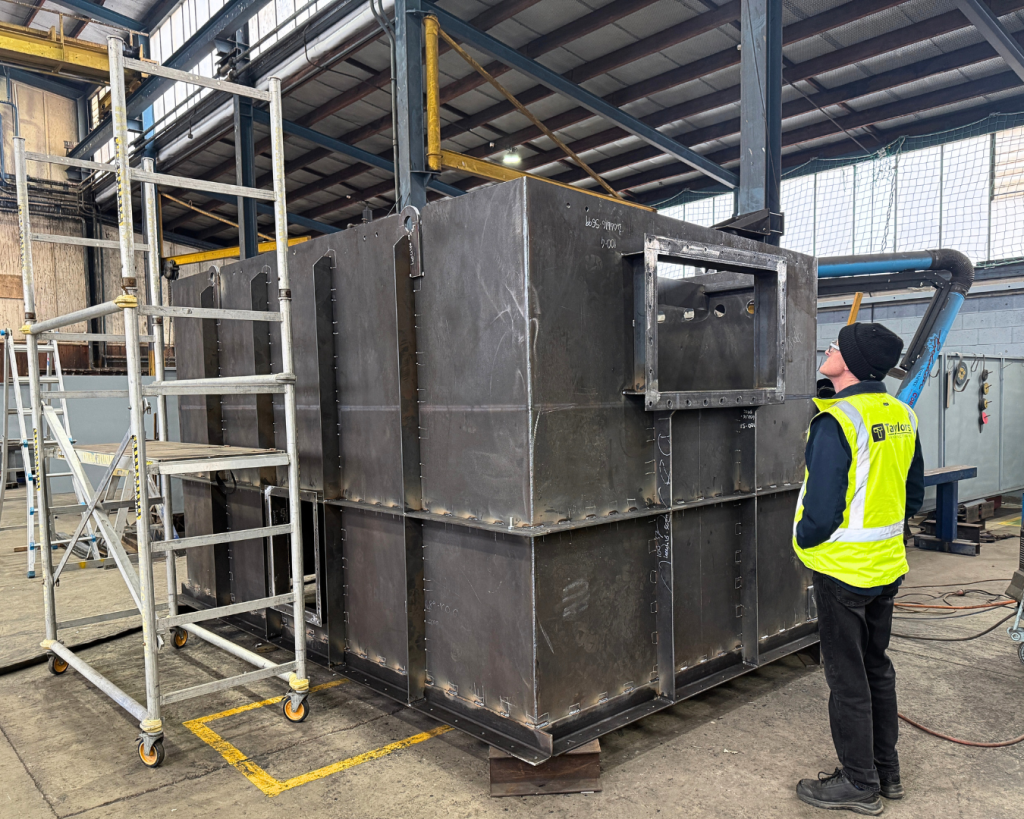

• Baghouse: PA120 × 4000 unit with welded 6 mm mild steel housing and heavy-duty tube sheet, using anti-static polyester filter bags with snap cuff attachments and rigid cages.

• Cleaning and Control: Online pulsejet cleaning with double diaphragm valves and a pressure-sensing controller to initiate cleaning only when needed.

• Safety Features: Explosion vents sized to NFPA requirements, plus ladders, handrails and access platforms compliant with Australian WHS standards.

• Exhaust Fan: Taymac FB710 exhaust fan with variable speed drive to handle 25 000 m³/h flow, plus inlet transitions and outlet ductwork.

• Material Discharge: Heavy-duty 300 mm rotary airlock, outlet auger, and a vibrating level sensor for the hopper.

The project is underway.
